• Spelsberg GTi-4-g Enclosure

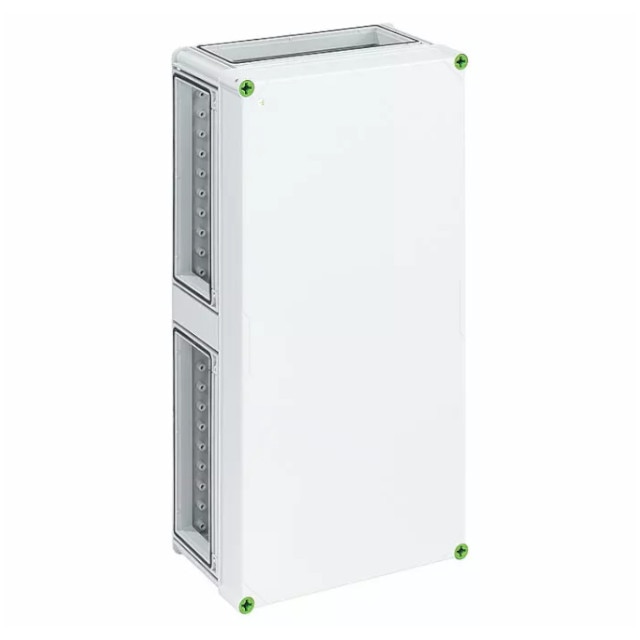

Spelsberg GTi-4-g Enclosure

Manufacturers Part Number 1040401
BayWa r.e. Part Number EN3-GTi-4-g
Available for ✅ Consumer-Account ✅ Trade-Account
$‎360.00

(excl. GST)

WarehouseQty AvailableQty Restock
BayWa WA Perth36

Back

Product Description

  • Rated insulation voltage AC / 690V
  • Rated insulation voltage DC / 1000V
  • Protection class IP65
  • Dimensions – Width 320mm / Length 640mm / Height 179mm - Inner height 157mm
  • Industry quality
  • Halogen-free
  • Flammability class - UL94-V2
  • Glow-wire flammability  / EN 60695-2-11 - 960 °C
  • Surface mounted
  • Impact strength - IK08
  • Cover material - Polycarbonate
  • Sealing material  - Polyurethane
  • Cover screw material - Polyamide, glass-fiber reinforced
Back
Dimensions 32 x 64 x 17.9 cm Weight 2.99kg
