• Spelsberg GTi-1-g Enclosure

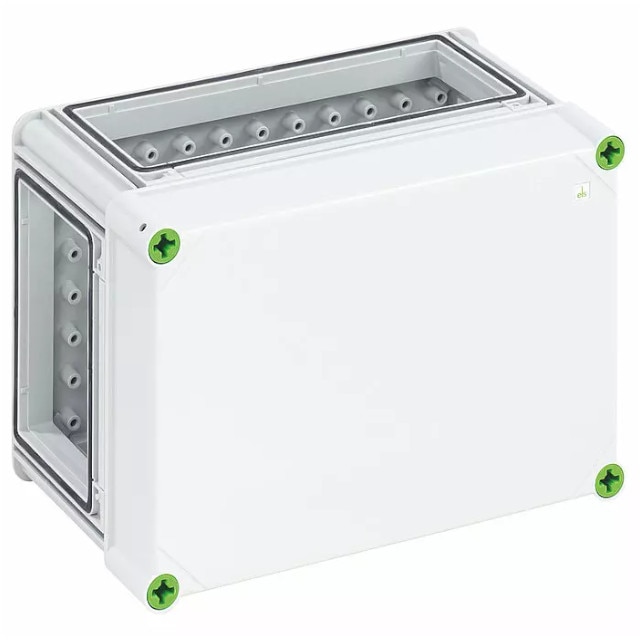

Spelsberg GTi-1-g Enclosure

Manufacturers Part Number 1040101
BayWa r.e. Part Number EN3-GTi-1-g
Available for ✅ Consumer-Account ✅ Trade-Account
$‎178.00

(excl. GST)

WarehouseQty AvailableQty Restock
BayWa WA Perth60

Back

Product Description

  • Rated insulation voltage AC / 690 V
  • Rated insulation voltage DC / 1000 V
  • Protection class IP65
  • Dimensions – Width 320 mm / Length 120 mm / Height 179mm - Inner height 157 mm
  • Industry quality
  • Halogen-free
  • Flammability class - UL94 V2
  • Glow-wire flammability  / EN 60695-2-11 - 960 °C
  • Surface mounted
  • Impact strength - IK08
  • Cover material - Polycarbonate
  • Sealing material  - Polyurethane
  • Cover screw material - Polyamide, glass-fiber reinforced
Back
Dimensions 32 x 22 x 17.9 cm Weight 1.34kg
Back

Documents
