• Selectronic PCC144M1000 Manager

Selectronic PCC144M1000 Manager

Manufacturers Part Number 005385
BayWa r.e. Part Number BS701320
Available for ✅ Consumer-Account ✅ Trade-Account
WarehouseQty AvailableQty Restock
BayWa WA Perth0

Back

Product Description

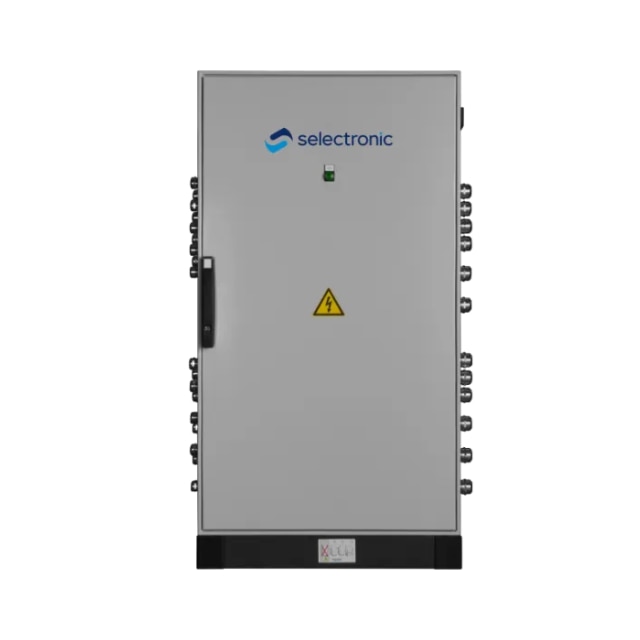

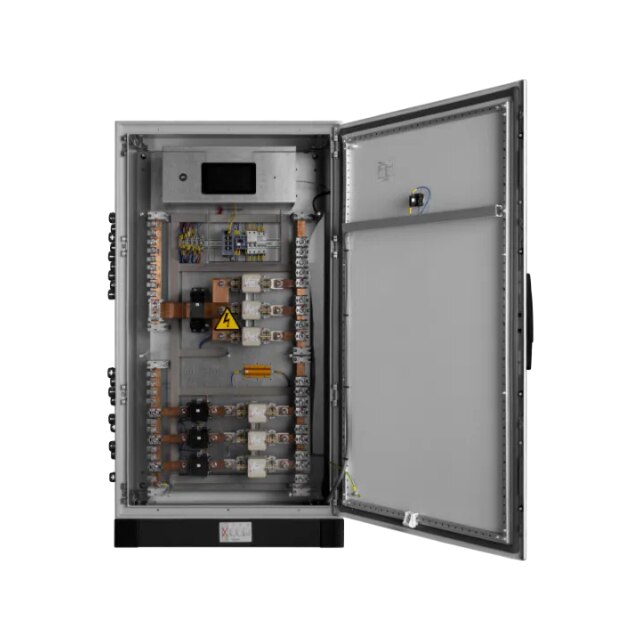

Electrical Enclosure which includes Busbars to connect Worker Cabinets and Inverters.Central Battery EMU inside this enclosure. A worker cabinet will feed into a Manager Cabinet. 1000A Max DC Current. System capacity 120- 640kWh. 4 x Worker Cabinet inputs up to 185mm2. 6 x 120mm2 inverter outputs. Inverter outputs includes circuit protection plus door mounted Battery Isolation switch.
Back
Dimensions 30 x 80 x 120 cm Weight 120.0kg
