• Trina Vertex 570W

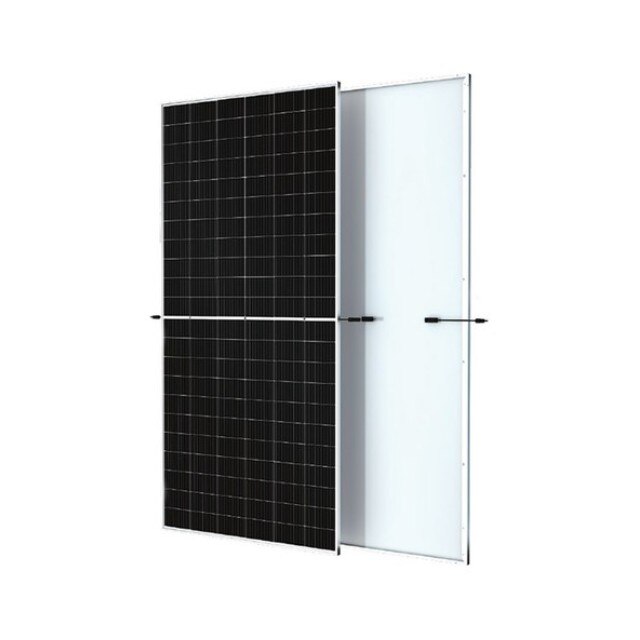

Trina Vertex 570W

Manufacturers Part Number TSM-570DE19R
BayWa r.e. Part Number SP383570-132
Available for ✅ Consumer-Account ✅ Trade-Account
WarehouseQty AvailableQty Restock
BayWa WA Perth0

Product Description

High customer value
Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of
System) cost, shorter payback time
Lower rst year and annual degradation
Designed for compatibility with existing mainstream system
components
Higher return on Investment

High power up to 585W
Up to 21.6% module eciency with high density interconnect
technology
Multi-busbar technology for better light trapping eect, lower
series resistance and improved current collection

High reliability
Minimized micro-cracks with innovative non-destructive cutting
technology
Ensured PID resistance through cell process and module material
control
Mechanical performance up to 5400 Pa positive load and 2400 Pa
negative load

High energy yield
Excellent IAM (Incident Angle Modier) and low irradiation
performance, validated by 3rd party certications
The unique design provides optimized energy production under
inter-row shading conditions
Lower temperature coecient (-0.34%) and operating temperature

Watt 570
Cell technology Monocrystalline
Module efficiency 21.1 %
Panel frame color Silver Panel backsheet color White
Dimensions 238.4 x 113.4 x 3.0 cm Weight 28.6kg
Connector Type MC4-EVO2
Product warranty 25 years
Pallet Quantity 36

Documents
